Topcon GLS 2000 3D Laser

Description

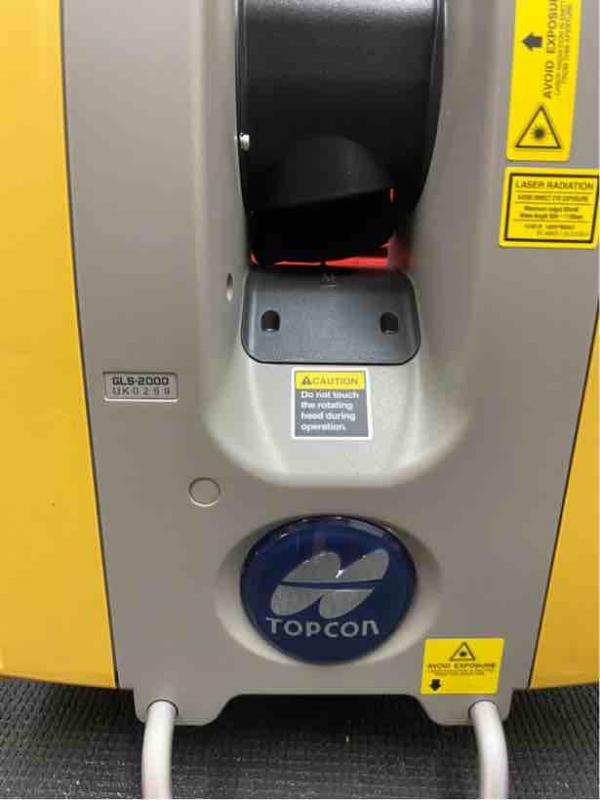

Topcon GLS 2000 3D Laser

Topcon GLS 2000 3D Laser With the newest workflow and scanning technologies, you can do any task quickly. With the help of the GLS-2200’s distinctive survey-style setup and intuitive processing software, laborious scanning procedures may be quickly and easily completed.

• Unique scanning mode that can capture dense wet concrete data and larger areas
• Get cleaner data with 1mm Plane Fit accuracy through MAGNET Collage
• HDR imaging capability enhances 3D model rendering results
• Surveyor-style setup synchronises the scanner with the same coordinate system as the design file, reducing post-processing time
• Unequaled 200m setup target range reduces number of setups
• API that allows 3rd party software to directly interface with the scanner for unique industry applications

Specifications

Maximum Range (System Performance)

– Standard Mode: Standard Mode
– High Speed Mode: 210m at 90%
– Low Power Mode: 210m at 90%

Single Point Accuracy (System Performance)

– Distance: 3.5mm (1-150m), 1sigma
– Angle: 6”

Dual Axis Compensator (System Performance)

– Resolution: 1”
– Accuracy: 4”
– Range: -/+ 6’

Target Deflection Accuracy (System Performance)

– Target Deflection Accuracy: 3” at 50m

Scanning Control

– Control System: On-board

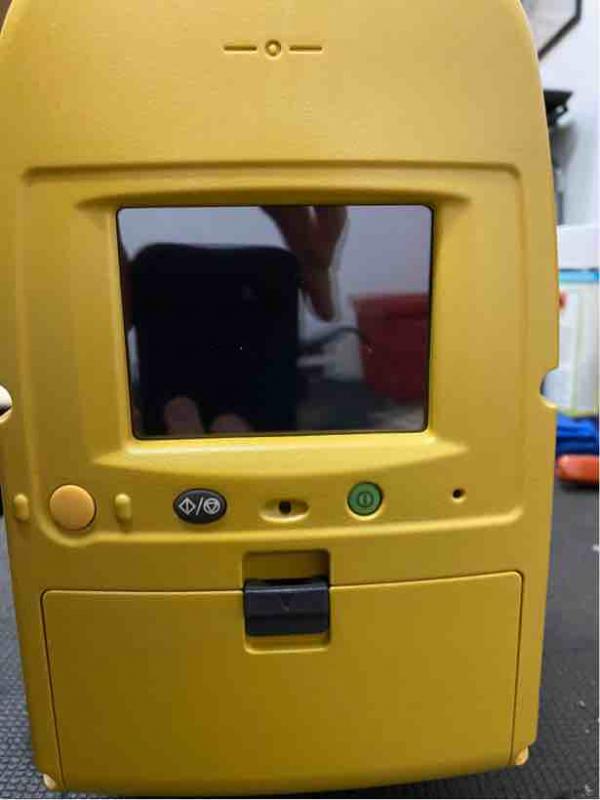

– Display: VGA Color Touch Display
– Keyboard: 3 Key
– Data Storage: SD Card

Environmental

– Operation Temperture: -5ºC to 45ºC
– Storage Temperture: -20ºC to 60ºC
– Dust/Humidity: IP54

Physical

– Dimensions: 152 x 293 x 412mm
– Weight: 11kg
– Keyboard: 21 keys

Package includes:

– GLS-2000 Instrument

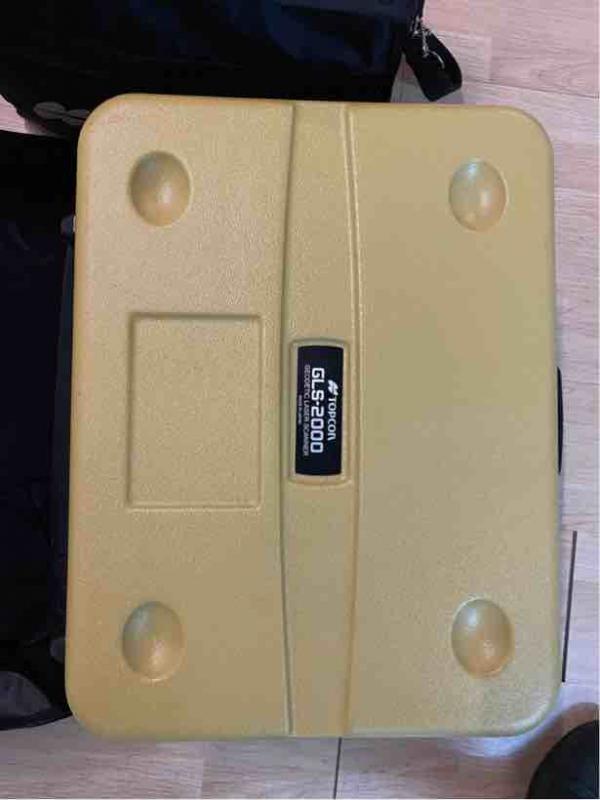

– Carry Case
– 4x Batteries and 2x Chargers
– Tribrach
– Cleaning Kit and Lens Cover
– Tooling Kit
– SDHC Memory Card
– ScanMaster Software
