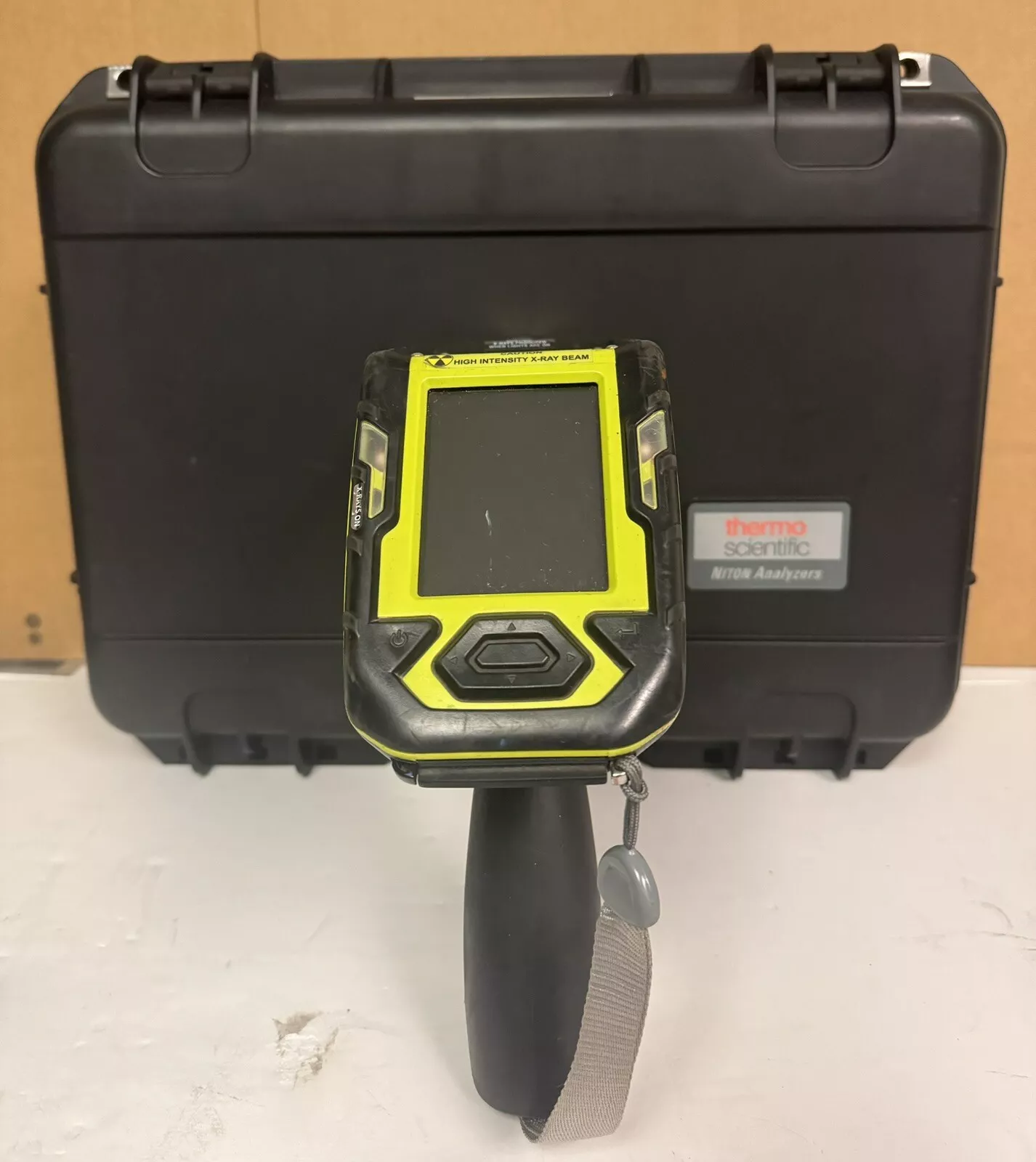

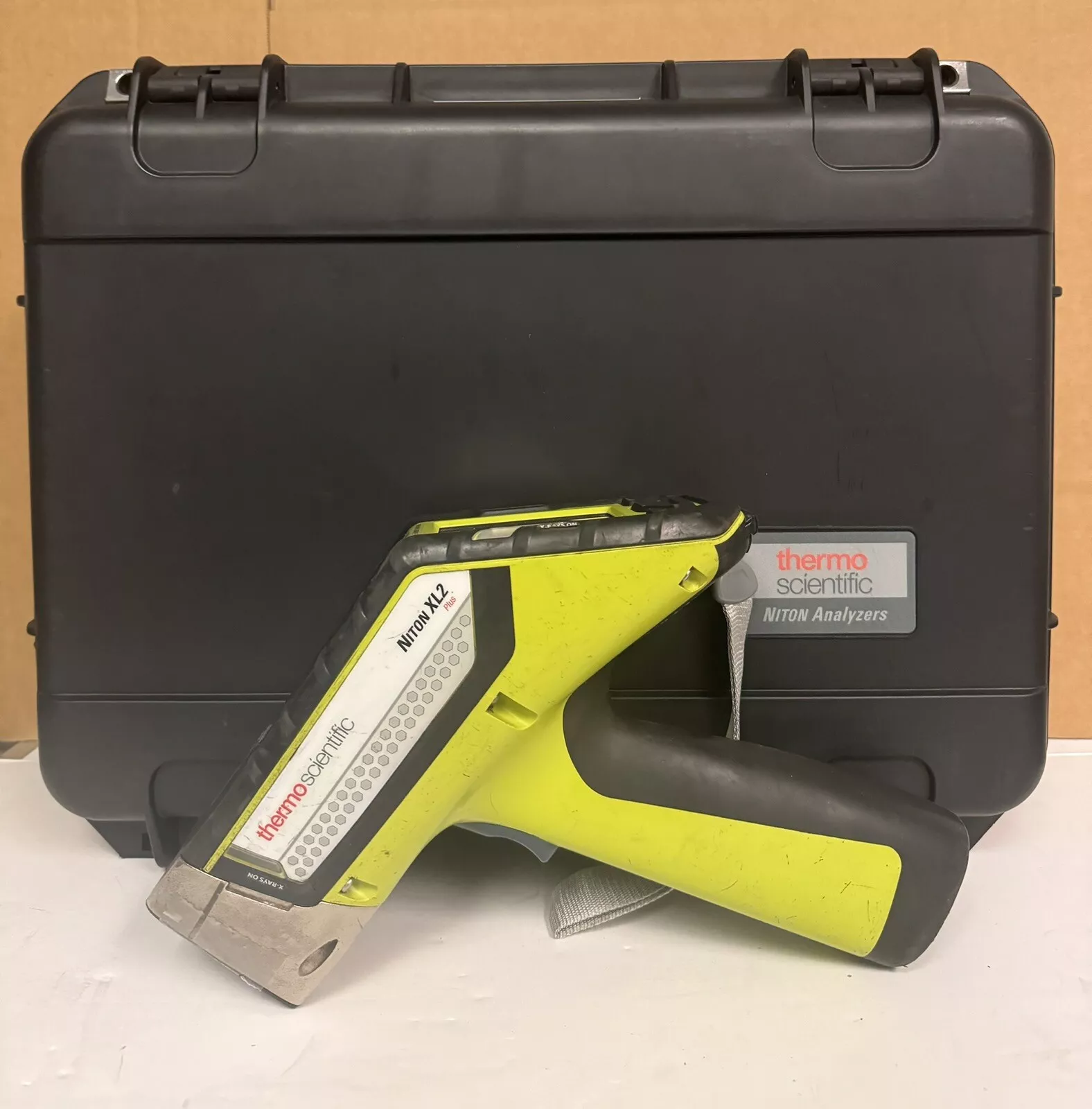

Thermo Scientific Niton XL2 980 PLUS
Thermo Scientific Niton XL2 980 PLUS Quick, precise, and adaptable XRF analysis. The Thermo ScientificTM NitonTM XL2 Plus handheld XRF analyzer is the choice of industrial organizations when dependability, performance, and efficiency are paramount. The Niton XL2 Plus, with its improved ruggedness and superior analysis, is designed to fit your workflow. You can rely on the Niton XL2 Plus for many years to come because it was built on a solid reputation for durability and reliability.
Applications
Verification of metals and alloys in manufacturing
Quality Assurance testing for positive material identification
Point-and-shoot sorting at scrap recycling operations
Coating thickness measurements from single element layers
Precious metal assay of bullion and jewelry
Geochemical analysis for ore trading and grade control
On-site heavy metal screening of polluted soils
Lead in paint inspection of industrial facilities
Screening of hazardous substances in consumer goods
Analytical performance
The Niton XL2 Plus is made to deliver findings quickly and with low detection limits, so you can be guaranteed of accuracy. The Niton XL2 Plus provides the best sensitivity for every measurement thanks to a next-generation silicon drift detector, dynamic current control, and a patented 2W x-ray tube. To get reliable findings, the Niton XL2 Plus compensates for sample matrix effects using an intelligent Fundamental Parameter (FP) calibration.
Purpose built
The Niton XL2 Plus, which maximizes both form and performance, is designed to thrive in even the most demanding settings. With basic Detector ProGuard protection, analyze sharp objects with the least amount of puncture danger possible. With its verified IP54 rating, the Niton XL2 Plus is protected from dust and moisture, guaranteeing continuous performance even in the most demanding industrial settings.
Functionality

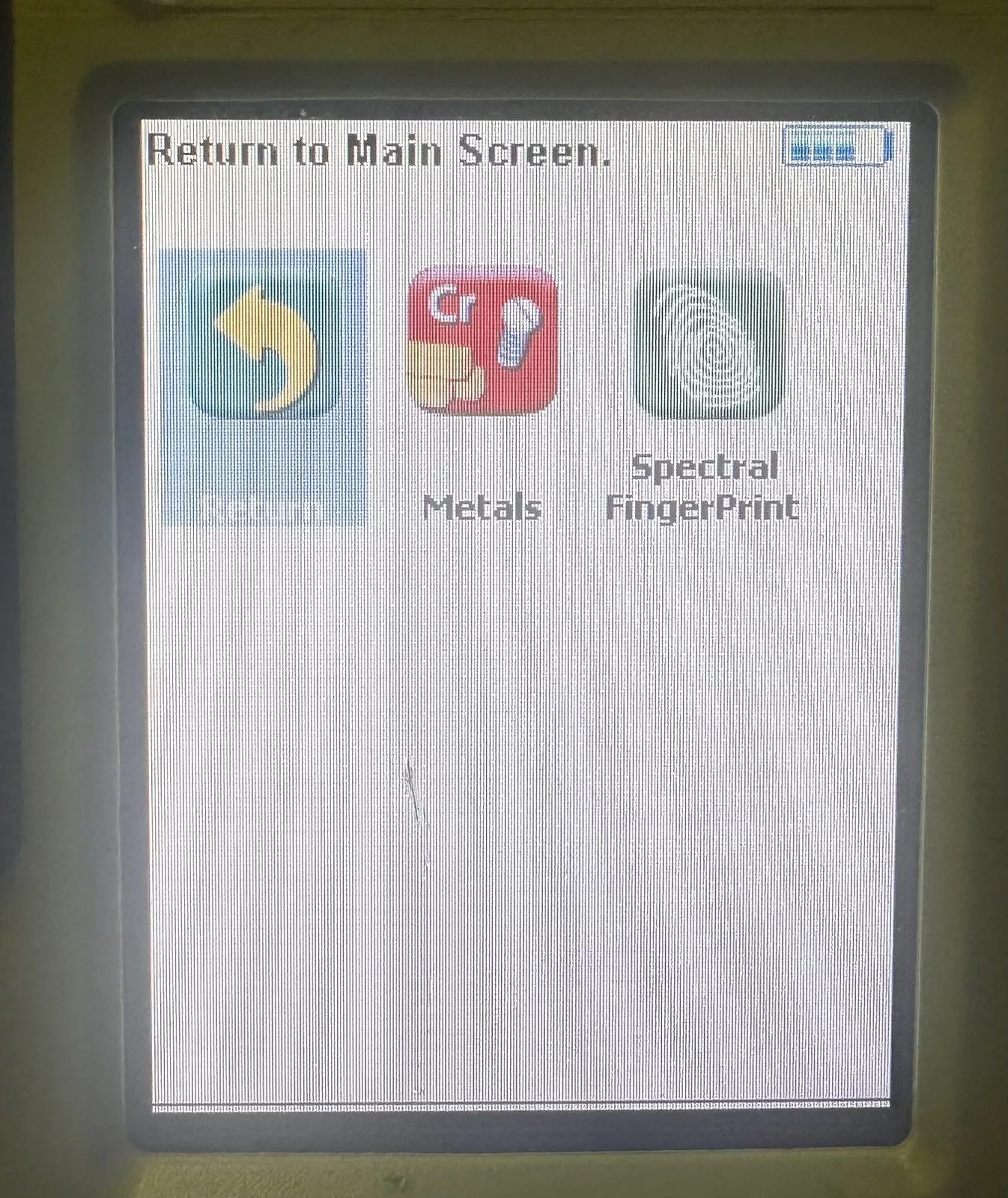

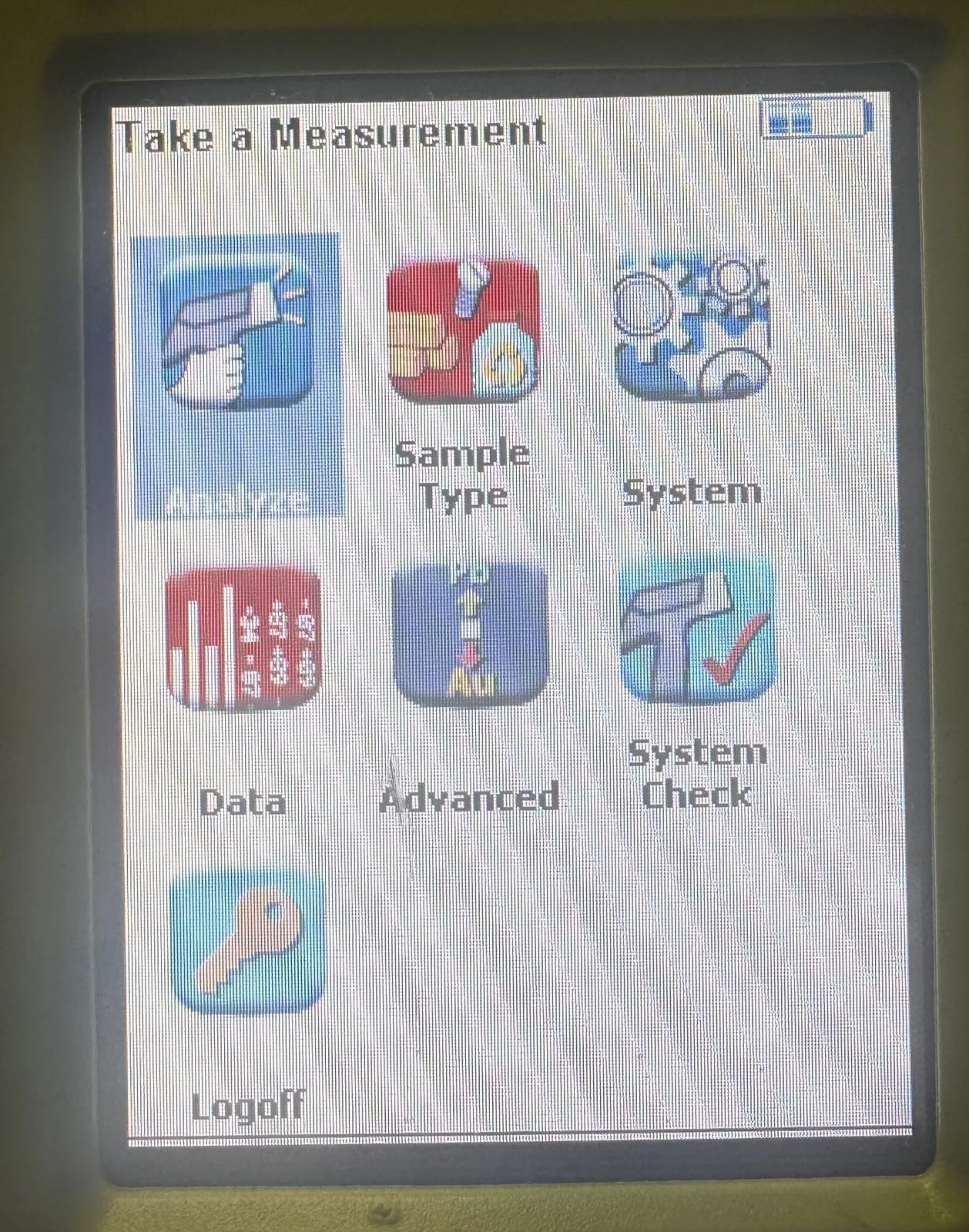

Point-and-shoot simplicity is preserved and navigation is made easier with a streamlined application interface. For quick navigation, make use of the optional directional keys or touchscreen functionality. When a low battery needs to be replaced, a hot-swap battery keeps you going. While accurate sample location for every measurement is provided by an integrated micro camera and nose guard alignment
Versatility
The Niton XL2 Plus keeps you ready for even the most demanding industrial situations, whether you’re in the field or on the shop floor. Operators are able to scan a wide variety of materials for various uses. The Niton XL2 Plus is capable of identifying pure metals and alloys, spotting tramp elements, and obtaining geochemical data.

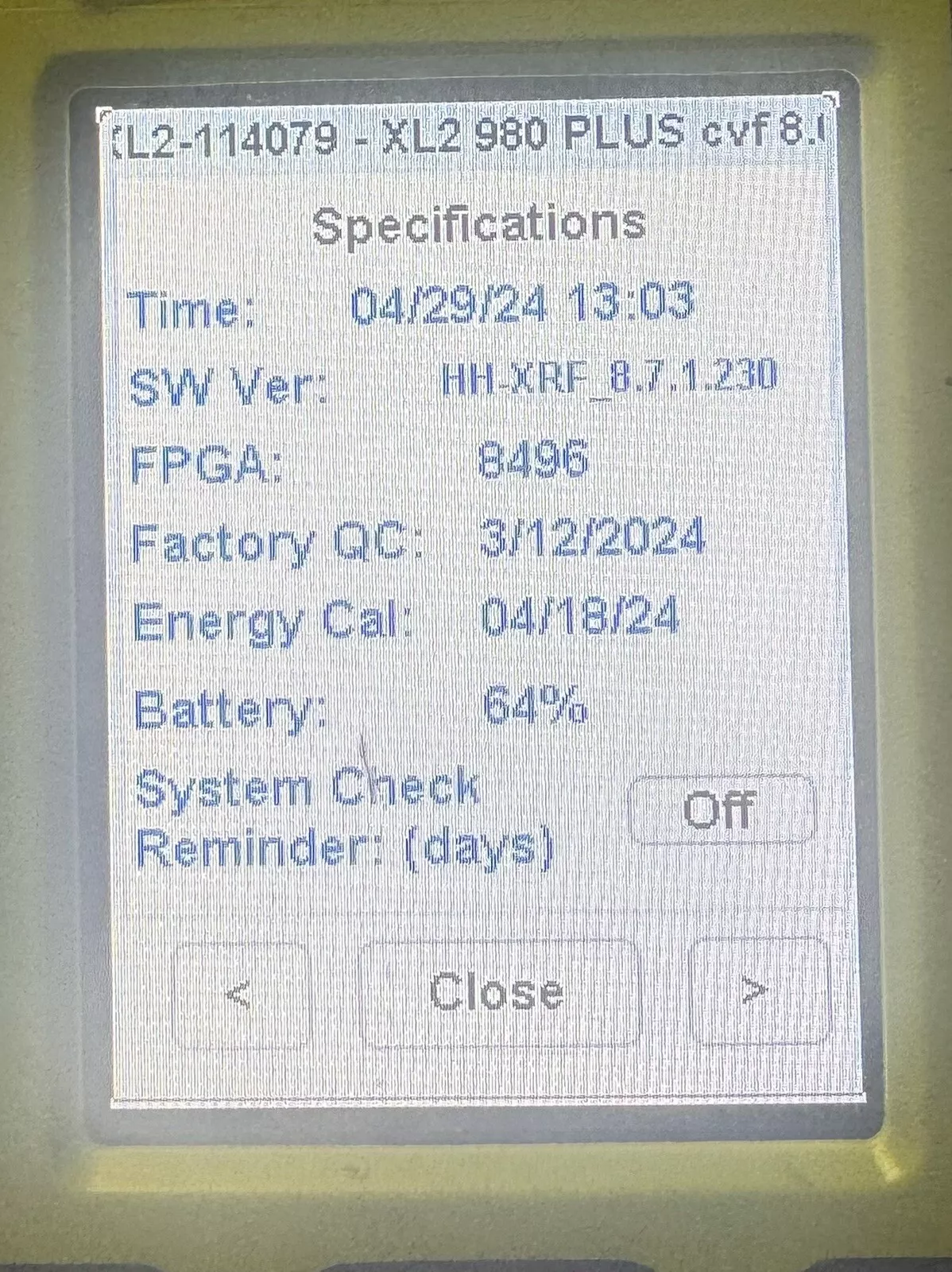

Specifications:
| Weight | 3.4 lbs with battery (1.53 kg) |
| Dimensions | 10 x 10.8 x 3.9 in (25.6 x 27.5 x 10 cm) |
| X-Ray Source | X-Ray Tube: Ag anode (6-45kV, 1-200uA, 2W max) Dynamically adjustable current for optimal sensitivity on every analysis |
| Detector | Silicon drift detector (SDD) Detector ProGuard protection included |
| Spot Size | 8 mm collimation |
| Analytical Range | Mg-U |
| Calibration Modes | General Metals, Precious Metals, Coatings, Mining, Soils, Electronic Alloys, Plastics, Industrial Lead in Paint, Lead in Paint Products |
| Libraries | Default alloy libraries based on SAE, AISI, ASTM, AA standards Users may create and edit libraries |

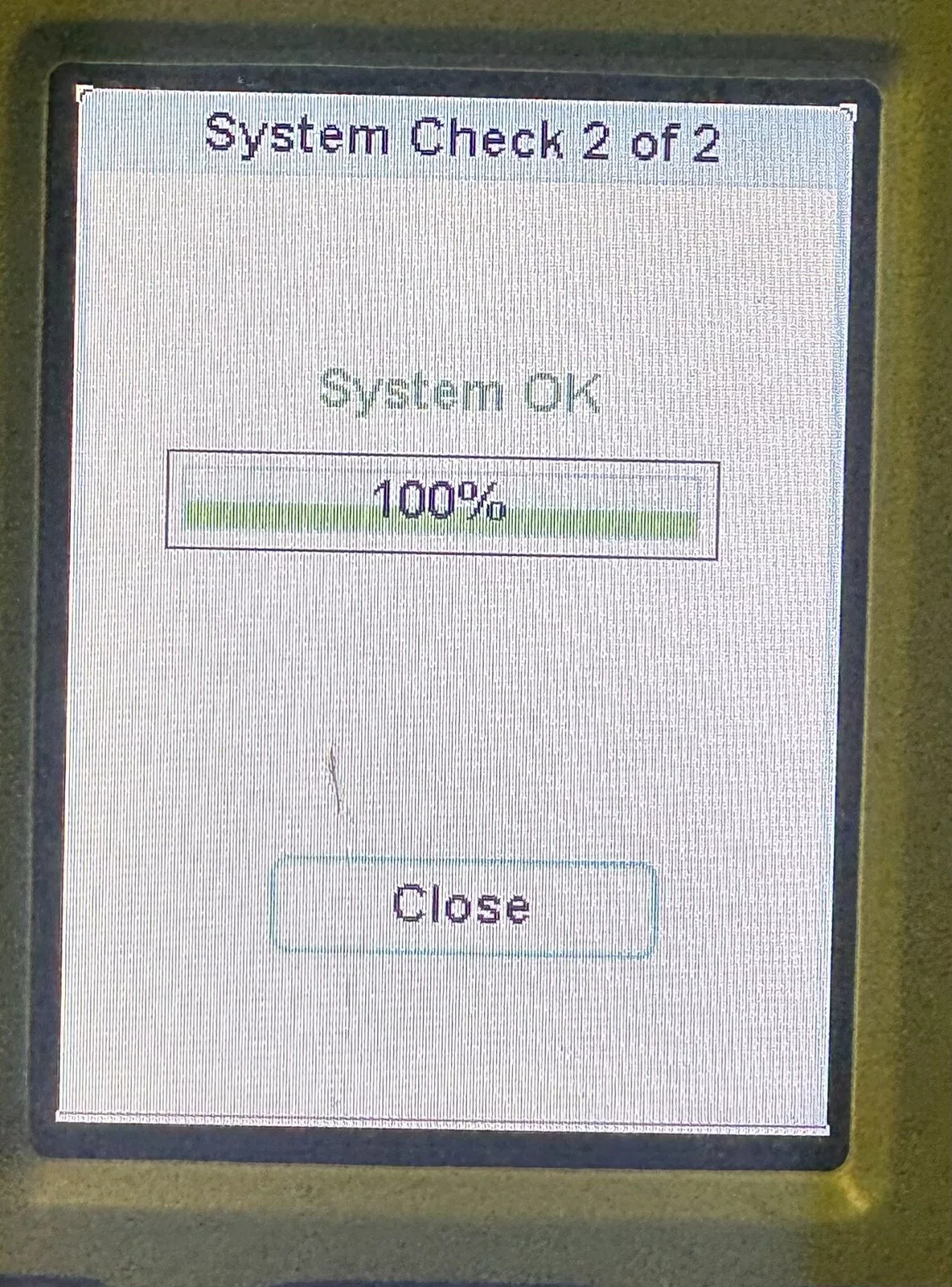

| System Check | Built-in standardization via automatic system check |
| IP Rating | IP54 (splash and dust proof) |
| Operating Environment | Temperature: -10°C to 50°C Humidity: 0% to 80% relative humidity non-condensing |
| Display | Fixed angle, color, resistive touchscreen display |

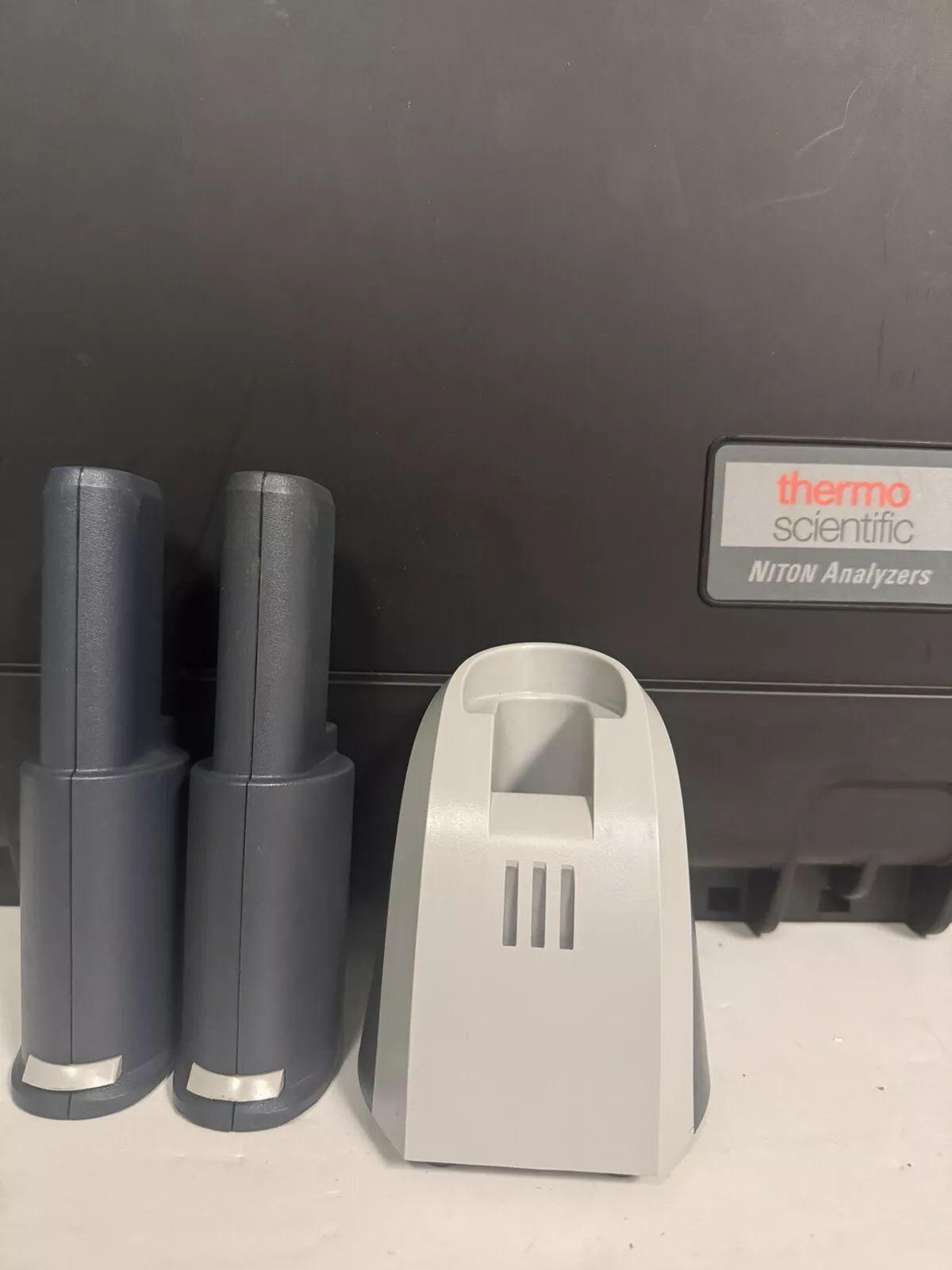

| Power | 7.4V lithium-ion battery, or 12V DC, 3A, 36W power supply Hot swap functionality keeps analyzer powered during battery replacements |
| Camera | Integrated CCD micro camera for locating and recording measurement positions |
| Bluetooth | Supports print functionality, external GPS connectivity and barcode reader |
| Memory / Data Storage | 64 MB internal system memory / 128 MB internal user storage Stores approximately 10,000 readings with spectra (fewer if images are saved) |
| Data Entry | Touchscreen keyboard User customizable data entry Optional wireless remote barcode reade |
| Data Transfer | USB, Bluetooth, and RS-232 serial communication |
| Optional Accessories | Thermo Scientific™ portable test stand Thermo Scientific™ mobile test stand Thermo Scientific™ field mate test stand Thermo Scientific™ soil guard |
| Compliance | CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1, UL 61010-1 |
