Description
Lutronic eCO2
Lutronic eCO2
Lutronic eCO2 from Lutronic is the smart choice for providing fast, full-spectrum CO2 treatments with improved pain management and unparalleled outcomes. Your busy practice will appreciate its industry-leading reliability & ease-of-use, and your patients will rave about their spectacular results.
Key Benefits
— Customizable Fractional CO2 Laser with 0.1mm Precision
— Users can easily and intuitively balance results and safety by delivering a full range of ablative/non-ablative energy at the desired energy and depth.
— EcoTone™ is a newly branded light resurfacing treatment with minimal downtime
— With no artificial per-patient consumable and an extremely low cost of ownership, eCO2 owners can capture an extremely high percentage of treatment revenue.
Before & Afters
CLINICAL DATA & ARTICLES
Efficiency of Carbon Dioxide Fractional Laser in Skin Resurfacing
3 Clinically-backed Facts:
• Intelligent Precision with Smart Safety: Users can easily and intuitively balance results and safety by delivering ablative energy at the desired density and depth with multiple spot sizes
• Unique, Proprietary Features: Patented Controlled Chaos Technology (CCT™) generates random energy delivery patterns to minimize complications from bulk heating and maximize patient comfort
• Brilliant Dependability: With an extremely low rate of failure and years of proven performance in the field, eCO2 fulfills physicians’ extensive needs with a highly reliable, powerful resurfacing solution
Laser Type:Ablative Fractional Resurfacing (AFR)
Beam Delivery Method:Articulated Arm with Scanner or Convetional Handpiece
Medium & Method of Generation:Seall Off CO2 RF Mudule Laser
Wavelength:10,600 nm
CO2 RF Module Maximum Power: Maximum 30 Watt at Continuous Wave
Fractional Scanner Handpiece:
User Mode:Static (Stamping) / Dynamic (Air Brushing)

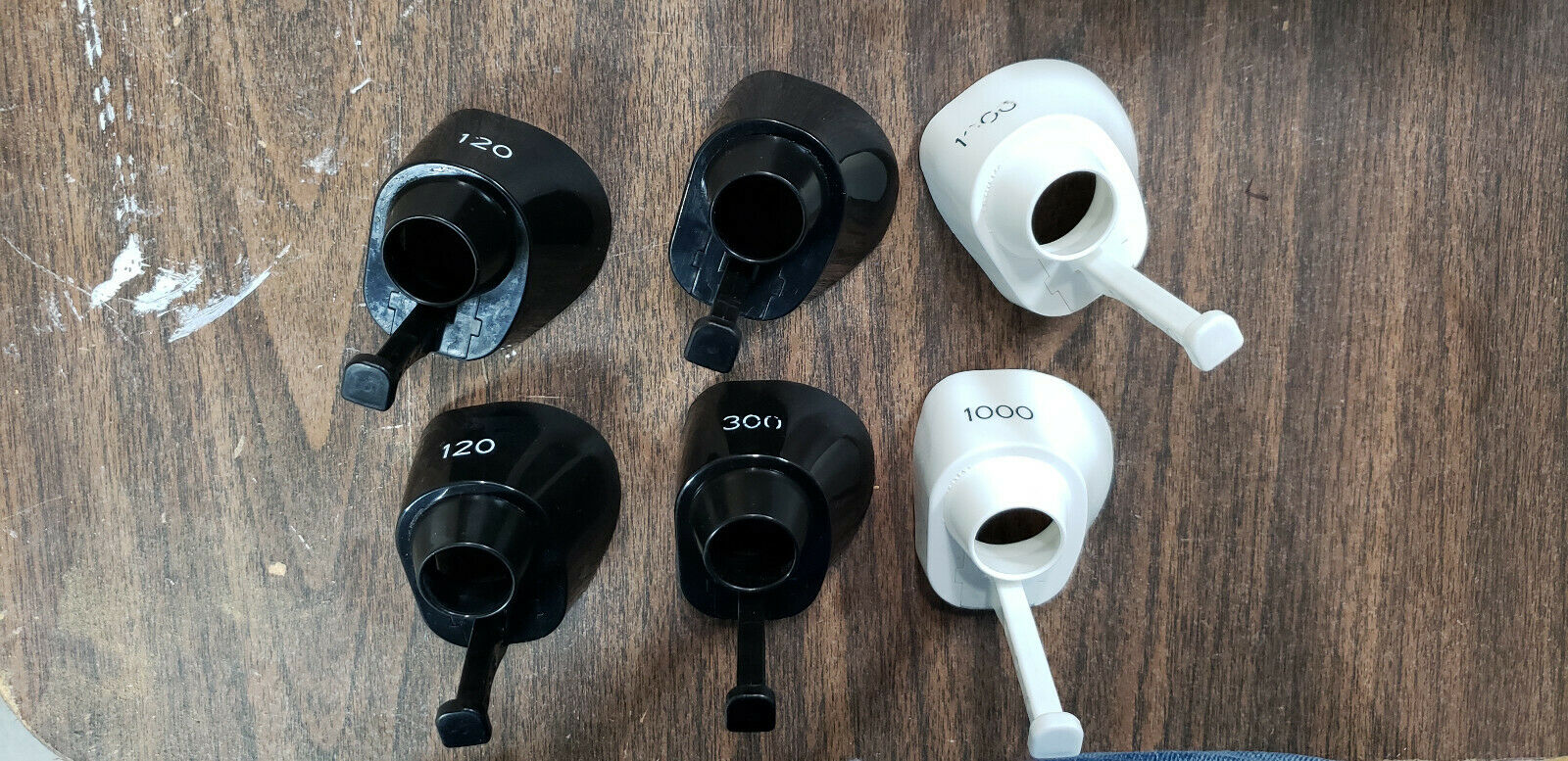

Tip:120, 300, 1000 um Spot Sizes
Pulse Energy:2 mJ – 240 mJ
Pulse Rate:10Hz to 200 Hz
Density:25 – 400 Spots / cm2
Scan Area:Max.14 x 14 mm
Scan Shapes:Square, Rectangle, Oval, Triangle, Point Beam
Normal Handpiece:
User Mode:Char Free (Ultra Pulse) / Super Pulse / CW
Pulse Rate:Char Free (Ultra Pulse) – 1 Hz to 700 Hz; Super Pulse – 1 Hz – 550 Hz
Pulse Width:Char Free (Ultra Pulse) – 40 us to 1000 us; Super Pulse – 1 ms – 5 ms
CW:ON Time – Cont. 0.01 s – 1.0 s
CW:OFF Time – SINGLE 0.001 s – 1.0 s
Adjustable Spot Size:0.2 – 1.0 mm
User Interface:Touch Screen with Flash Technology 7 inch LCD Screen
Dimensions EXCLUDES ARM: 360 mm (W) x 450 mm (L) x 1000 mm (H)
Dimensions WITH ARM: 360 mm (W) x 450 mm (L) x 1870 mm (H)
Weight:77 lbs. (35 kg)
Cooling:Air Cooling
Transform Your Practice with the Robust eCO2
Lutronics eCO2 is the premier fractional ablative laser that delivers the full spectrum of resurfacing treatments to your busy practice. You will appreciate how easy to use and reliable the system is while your patients rave about their outcomes.
LUTRONIC ECO2 – ABLATIVE CO2 FRACTIONAL LASER MINIMAL DOWNTIME & LESS DISCOMFORT
– Skin Tightening
– Wrinkles, Rhytids & Fine Lines
– Pigmented Lesions & Lentigines
– Scars
– Textural Irregularities
– Transepidermal Drug Delivery
– Dyschromia
– Solar/Actinic Elastosis
– Syringoma
– Vaporization, Incision & Excision Capabilities
