IDS Opera Duo

Description

IDS Opera Duo

IDS Opera Duo is the most user-friendly dual frequency ground penetrating radar available from IDS Italy. It allows for real-time on-site detection of underground metallic and nonmetallic pipes and cables. Opera Duo is designed to allow use by Operators at all levels making detection of buried utilities easier through its new software interface while needing virtually no maintenance for lifetime of equipment. The unit is based on a dual frequency antennae of 250MHz & 700MHz; the 250MHz frequency is for scanning and providing high resolution images of deep targets while the 700MHz is for scanning and providing high resolution images of shallow targets. The Opera Duo therefore provides the ability to locate the exact position of pipes and cables by a single scan (instead of changing antennae’s) – Saving time & increasing productivity.

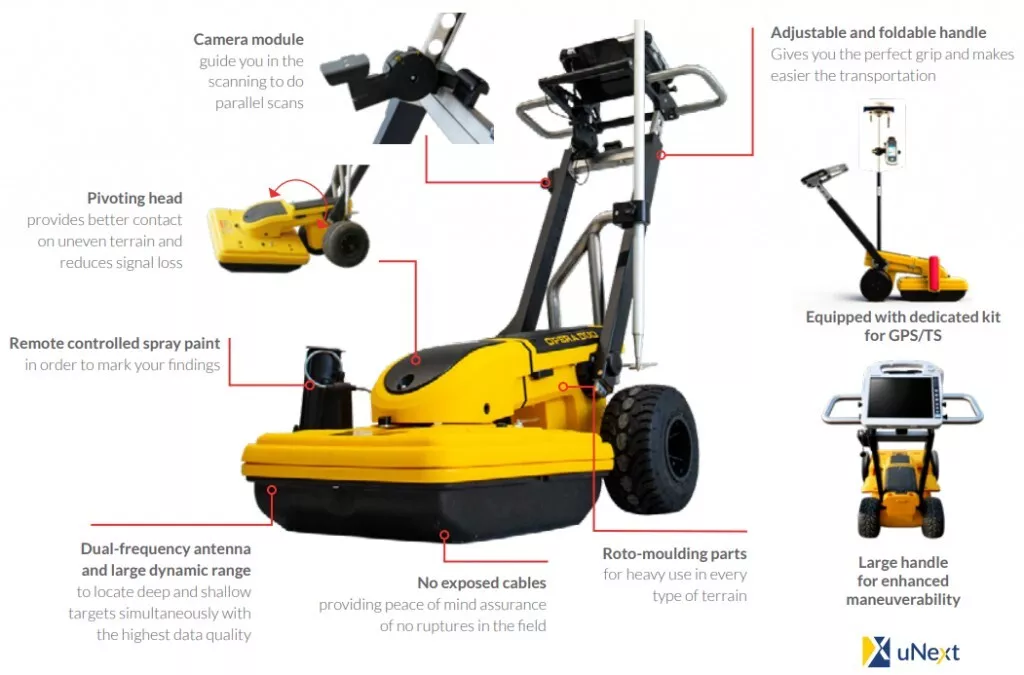

Main Features:

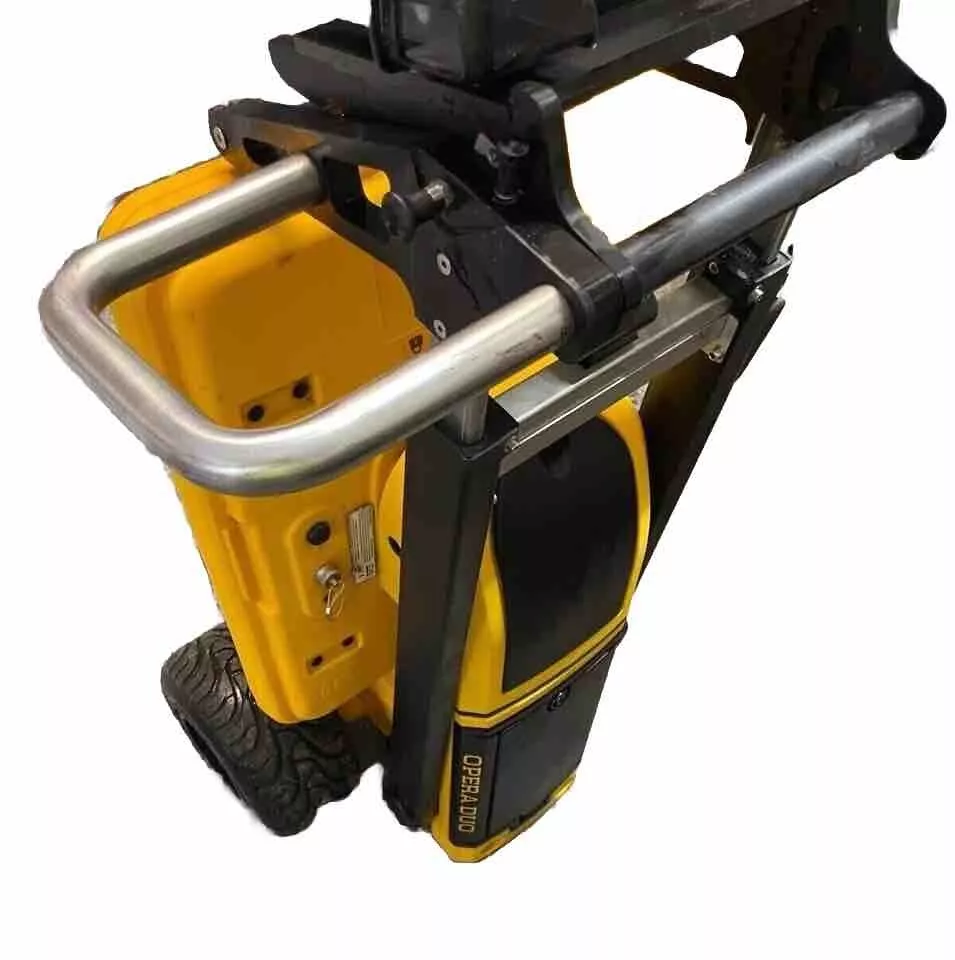

Superior Maneuverability – A large, comfortable handle to make pushing and pulling easier, large wheels for better control and a balanced weight distribution to offer minimum resistance.
Robustness – Engineered and built to withstand the harshest field conditions, the Opera Duo is suitable for heavy use in every type of terrain.
Data Quality – Large bandwidth offering the highest resolution; the largest dynamic range for the best penetration depth; and dual-head sensor integrating ultra-wide band antennas (250MHz and 700MHz).
Intuitiveness – Just click the start button to receive the best performance in every soil condition. No need to perform calibration or adjust any other manual settings.
Results Delivered On Site – The system tracks the position of the radar and marks targets automatically. All of the acquired data can be exported to CAD and GIS, and reports can be produced directly on site.
New camera module! – Opera Duo could be supplied with a camera whose aim is to reduce acquisition times, combine surface data with underground detection and allow a post-scanning analysis like you were on site!
Other Features:

Automatic calibration for an easy and quick start-up
Metric and imperial units
Visualization and storage of data from both antennas
Capability to mark targets and pipes in the software and in the ground
Available in more than 20 languages
Connection for an NmeA positioning device
Export to CAD
Export job reports
Advanced grid acquisition procedure
Superior maneuverability
Results delivered on site
Easy to use
