GSSI UtilityScan Pro

Description

GSSI UtilityScan Pro

GSSI UtilityScan Pro Both metallic and non-metallic objects, such as PVC pipes and underground storage tanks, as well as utilities like gas, communications, and sewage lines, can be easily identified and their positions and depths marked. The UtilityScan Pro, which is based on the SIR 4000 controller, gives GPR experts answers for any subterranean location scenario.

Fully Customizable System
The UtilityScan Pro offers a variety of antenna configurations and cart options for users to personalize. The customized solutions fit a variety of utility locating applications and offer survey flexibility, from well-prepared, smooth surfaces to rough terrain with our sturdy four-wheel cart.

The UtilityScan Pro delivers exceptional data quality and is rugged enough to withstand the job site’s toughest conditions. Locate subsurface utilities with confidence.

GSSI Utility Scan Pro GPR Spesifications

System: SIR 4000
Antennas: Compatible with all GSSI antennas
Number of Channels: Records data from 1 single-frequency antenna or 1 dual-frequency antenna
Data Storage: 32 GB Flash, 1 GB RAM
Display: 10.4” LED
GPS: Data logged internally

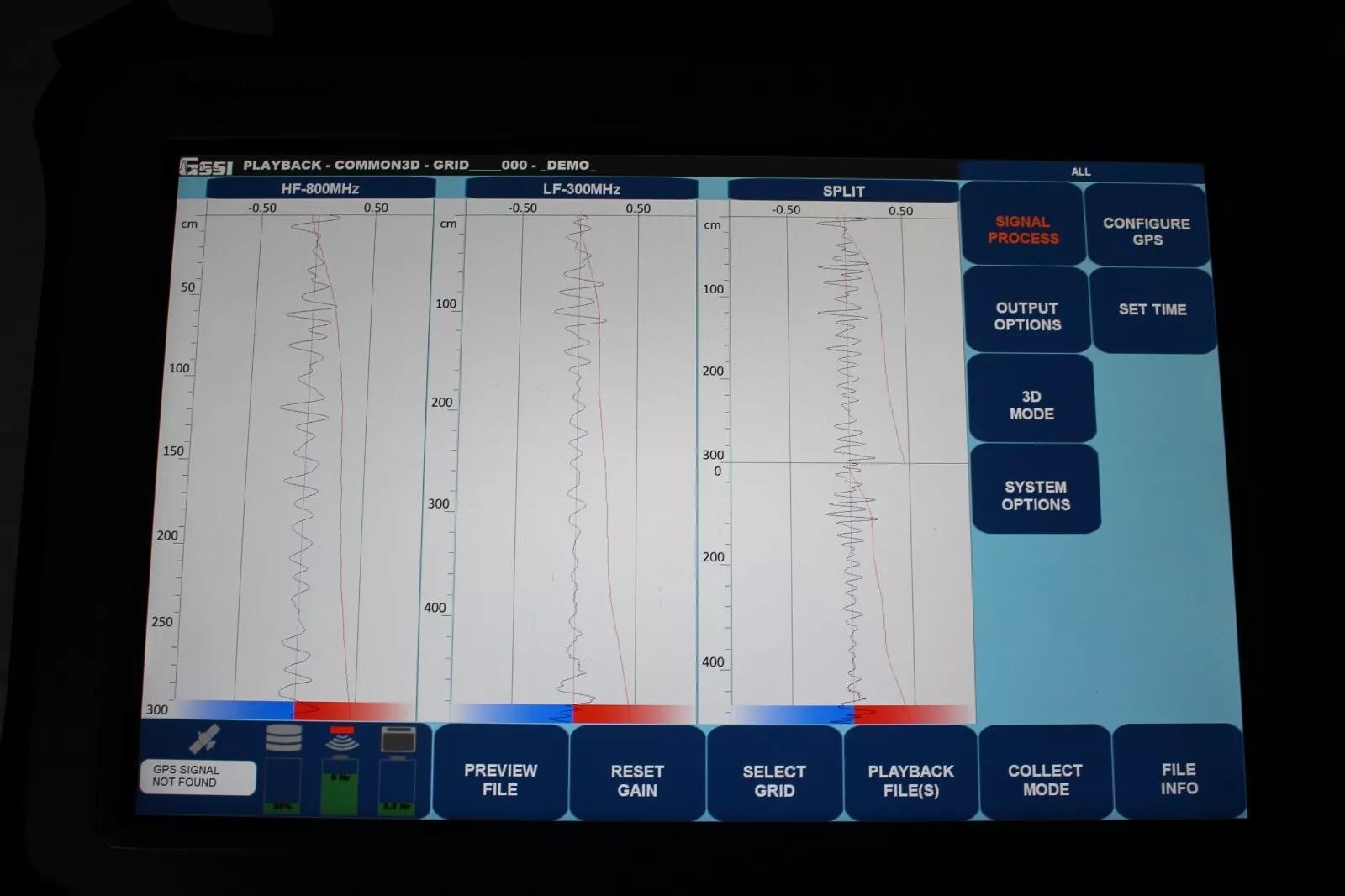

Display Modes: Linescan, Full 3D
Environmental Rating: P64
Data Acquisition
Data Format: RADAN® (dzt)
Output Data Format: 32-bit
Scan Inverval: User-selectable, up to 4000 scans/sec
Number of samples per scan: 256, 512, 1024, 2048, 4096, 8192, 16384
Operatiing Modes: Continuous (time) or survey wheel (distance triggered) or point mode
Time Range: 0-20,000 nanoseconds full scale, user-selectable Gain: manual adjustment from -42 to +126 dB Number of segments in gain curve is user-selectable from 1 to 8
Standard Real-Time Filters: Infinite Impulse Response (IIR) – Low and High Pass, vertical and horizontal – Finite Impulse Response (FIR) – Low and High Pass, vertical and horizontal
Advanced Real-Time Filters: Migration, Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal
Automactics System Setups: Storage of an unlimited number of system setup files for different survey conditions and/or antenna deployment configurations
Automatic Antenna Recognition: Automatic recognition of Smart Antennas to allow maximum compliant transmit rate

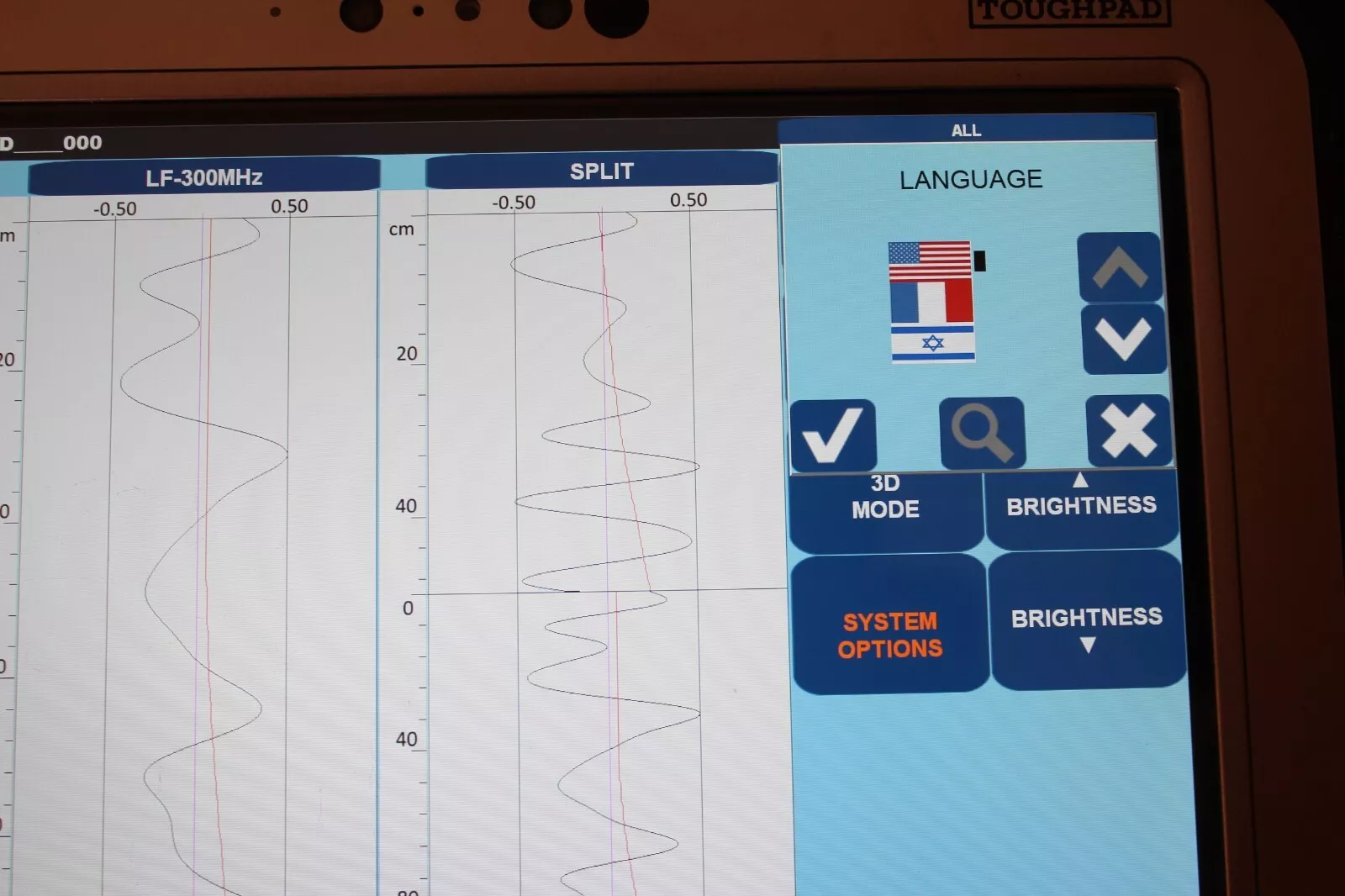

Languanges: English, Chinese, Japanese and French
Operating
Operating Temperature: -20°C to 40°C (-4°F to 104°F)
Batttery: Inspired Energy Ni2040ED, 3 hour runtime (battery life dependent on level of display brightness)
Transmit Rate: Up to 800 KHz (International) US/Canada and CE rates depend on antenna model
Input/Output
Available Ports: Analog and Digital, RS232, HDMI, Ethernet to PC, USB 2.0 port and mini USB
Ethernet: RJ45 100BT Ethernet
Usb Host: Usb host with external keyboard support, USB flash drive support and Usb hub support
Mechanical
Dimensions: 14x10x2.75 in (36x25x7 cm)
Weight: 10 lbs (4.53 kg) including battery
Relative Humidity: <95% non-condensing
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
GSSI Utility Scan Pro GPR package includes

SIR 4000 Control Unit, 400 MHz, 300/800 DF, or 350 HS Antenna
3-wheel or 4-wheel cart
2 m control cable
SIR 4000 sunshade
SIR 4000 AC/DC power supply
2x Lithium-ion battery, Dual-bay battery charger
Transit case
2-year warranty
RADAN 7 for UtilityScan, RADAN 7
LineTrac
2 Year Warranty
