Description

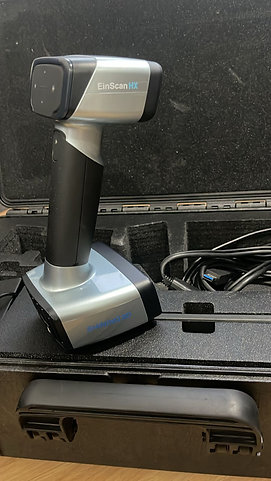

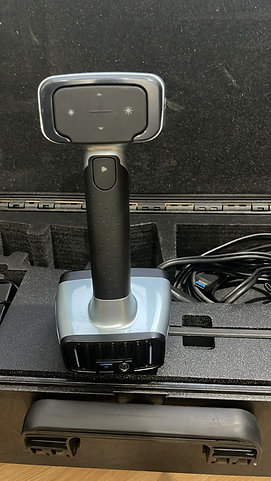

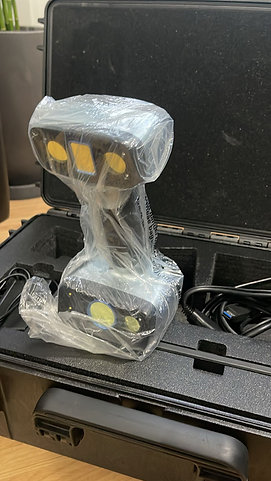

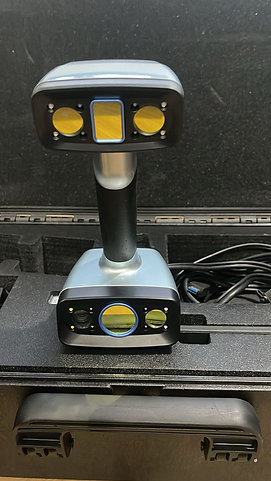

EinScan HX Handheld 3D Scanner
EinScan HX Handheld 3D Scanner delivers accurate and effective scans using a combination of blue laser and LED light source technology. It provides flexible, quick, and detailed 3D modeling, improving productivity and design quality, making it perfect for industrial and design applications. Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.
EinScan HX Handheld 3D Scanner Key Features :
– Hybrid Blue Laser & LED Light: While laser scanning, which is less sensitive to ambient light, performs better on reflective and dark-colored surfaces, EinScan HX’s LED light scanning enables quick 3D scanning.
– Quick Scanning: The EinScan HX can process up to 1,200,000 points per second in Rapid Scan Mode. In Laser Scan Mode, it can scan most things in minutes for CAD/CAM, 3D printing, reverse engineering, and other uses.
– Reliable Results: The majority of industrial applications for reverse engineering and measurement are satisfied by the excellent resolution and accuracy of the EinScan H. Its accuracy can reach 0.04mm in laser scanning mode, with a minimum point distance of 0.05mm.
– Portable & Simple to Use: The EinScan HX is simple to use and plug-and-play, with intuitive software that makes it suitable for both novice and expert 3D scanners. EinScan HX is a versatile, effective, and comfortable 3D scanning solution because of its ergonomic, lightweight, and portable design.
– Full-color Reproduction: In quick scan mode, the integrated color camera allows for full-color texture tracking and capture.
EinScan HX 3D Scanner Specifications:
| Scan Mode | Rapid Scan | Laser Scan |
| Light Source |
Blue LED | 7 Blue Laser Crosses |
| Safety | LED light (eye-safe) | CLASS I (eye-safe) |
| Scan Accuracy | Up to 0.05mm | Up to 0.04mm |
| Volumetric Accuracy* | 0.05+0.1mm/m | 0.04+0.06mm/m |
| Scan & align speed | 1,200,000points/s, 20FPS | 480,000 points/s 55FPS |
| Align modes | Markers, Feature, Hybrid, and Texture Alignment | Markers Alignment |
| Camera frame rate | 55FPS | |
| Working distance | 470mm | |
| Depth of Field | 200-700mm | 350mm-610mm |
| Maximum FOV |
420mm*440mm | 380mm*400mm |
| Point Distance | 0.25mm-3mm | 0.05mm-3mm |
| Built-in Color Camera | Yes | |
| Texture Scan |
Yes | No |
| Connection | USB3.0 | |
| Output file format | OBJ; STL; ASC; PLY; P3 ; 3MF | |
| Dimension | 108mm*110mm*237mm | |
| Scanner body weight |
710g | |
| Certification | CE, FCC, ROHS, WEEE, KC | |
| System support | Win10, 64bit | |
| Recommended Configuration | Graphics card: NVIDIA GTX1080 and higher Video memory: ≥4G Processor: I7-8700 Memory: ≥32GB |
|
